SEM 822D Bulldozer for Construction Earthmoving | Chengda
The SEM 822D is a track-type bulldozer built for earthmoving, mining and road construction. Its WD10G178E25 engine delivers 175 kW at 1,800 r/min, and the 26,520 kg operating weight with 71.2 kPa ground pressure keeps the machine stable on tough ground. An electronically controlled hydrostatic drive with stepless 0-10 km/h travel, plus a 6.4 m³ SU blade and adjustable parallelogram ripper, handles dozing and ripping in one pass. Six configurations — STD, LGP, CH, DS, WH and FR — cover everything from wet land to coal yards and desert work. Send your working condition for a tailored quote.
Get a factory-direct price with full shipping cost to your port.
| Parameter | Value |
|---|---|
| General Information | |
| Model | 822D |
| Configurations | STD Standard |
| Operating Weight (with SU Blade, Ripper) | 26,520kg |
| Operating Weight (with Semi-U Blade, Ripper) | 26,520kg (STD) |
| Ground Pressure | 71.2kPa |
| Ground Pressure (GBTT 30965) | 71.2kPa (STD) |
| Minimum Ground Clearance (excluding Grouser) | 400mm |
| Gradeability | 30° |
| Engine | |
| Engine Model | WD10G178E25 |
| Engine Power (ISO 14396) | 175kW |
| Rated Speed | 1,800r/min |
| Transmission System | |
| Transmission System Type | Dual-path, closed-loop, electronically controlled hydrostatic system |
| Travel Speed - Forward/Reverse | Stepless speed variation 0-10 km/h |
| Steering and Braking | Hydrostatic steering, wet multi-disc brakes |
| Working Hydraulic System | |
| Type | Closed center, pilot control |
| System Pressure | 19MPa |
| Pump Type | Gear pump |
| Blade | |
| Blade Type | SU/S (STD) |
| Blade Capacity (ISO 9246) | 6.4m³/5.8m³ (STD) |
| Blade Width (including Cutting Edge) | 3,660mm/3,800mm (STD) |
| Blade Height | 11,520mm/1,510mm (STD) |
| Blade Lift Height | 1,140mm (STD) |
| Blade Maximum Cutting Depth | 570mm (STD) |
| Blade Tilt Height (Center Hole) | 540mm (STD) |
| Blade Weight (excluding Push Arm) | 1,645kg (STD) |
| Minimum Turning Radius | 4,215kg (STD) |
| Ripper | |
| Ripper Type | Parallelogram structure (adjustable shank position) |
| Ripper Maximum Penetration Depth | 860mm |
| Ripper Maximum Lift Height | 640mm/742mm (STD) |
| Ripper Weight | 2,390kg (STD) |
| Undercarriage System | |
| Track Shoe Width | 560mm (STD) |
| Track Shoes (per Side) | 40 (STD) |
| Track Rollers (per Side) | 7 (STD) |
| Carrier Rollers (per Side) | 2 |
Full spec sheet with dimensions and axle options on request.
Request Full Specification Sheet
 |  |  |
See it from every angle — request more photos of your preferred configuration.
26,520 kg Operating Weight | 175 kW Engine Power | 6.4 m³ Blade Capacity |

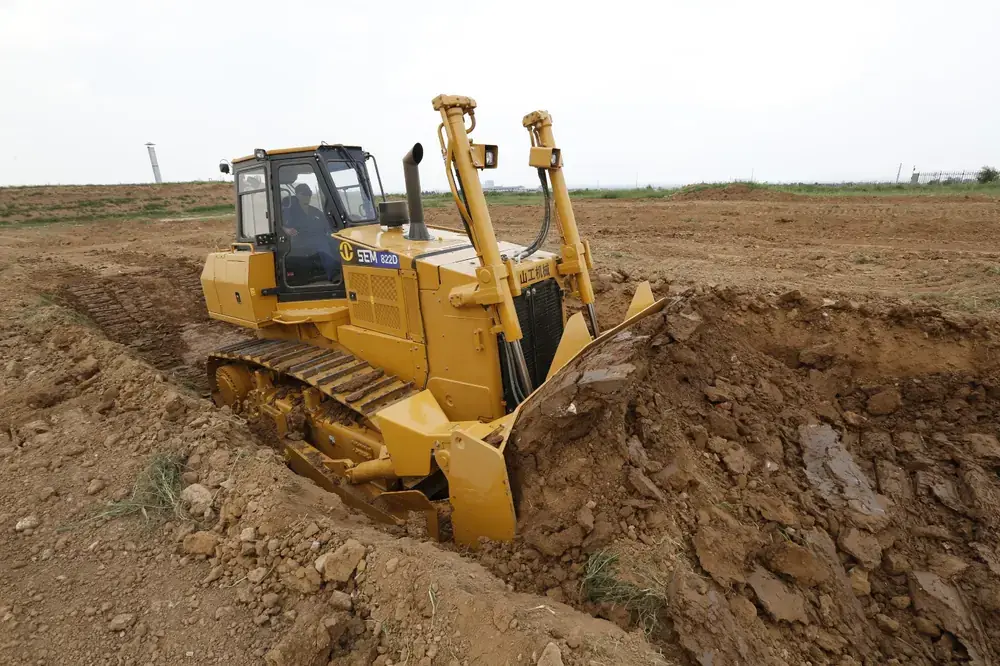

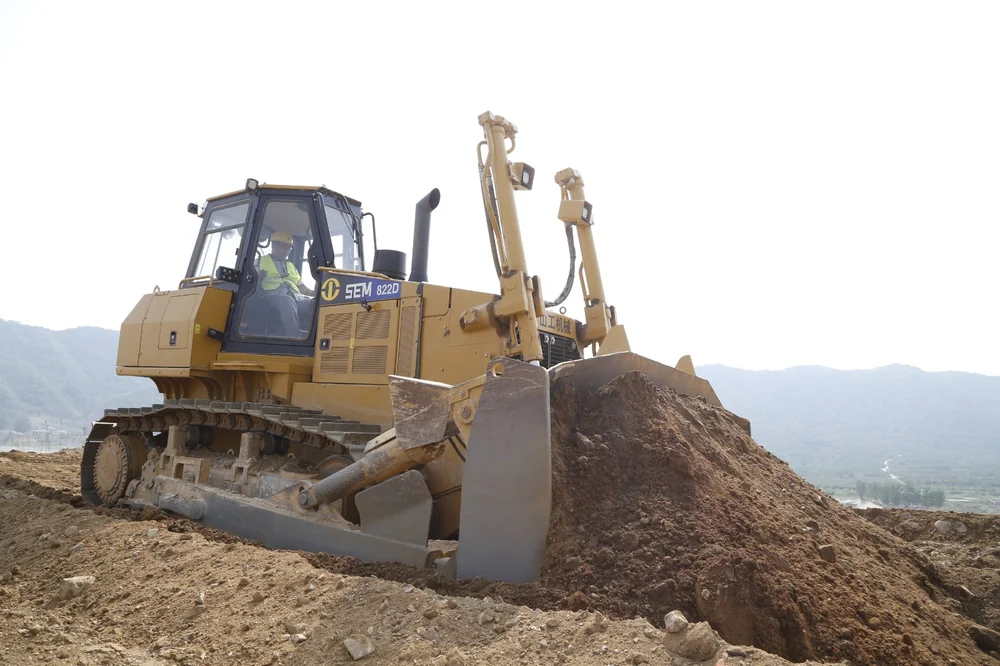

The SEM 822D bulldozer handles earthmoving on highway and railway construction sites, open-pit mines, power plants, coal yards and airport projects. Its SU/S blade with 6.4 m³ capacity and a 570 mm maximum cutting depth moves bulk material efficiently, while the parallelogram ripper reaches 860 mm deep to break compacted ground before grading. With 30° gradeability and 400 mm minimum ground clearance, it keeps working on uneven job sites and steep access ramps.
Six configurations let one machine family cover very different ground conditions: the LGP wetland version runs on 915 mm track shoes with ground pressure down to 43.0 kPa for soft, waterlogged soil, the CH coal version carries a 9.2 m³ blade for coal stockpile handling, and the WH sanitation version uses a 12.7 m³ blade for landfill spreading and compaction. Desert, forestry and standard versions cover sand control, land clearing and general municipal work. A 175 kW engine paired with an electronically controlled hydrostatic drive gives stepless 0-10 km/h travel, so operators can match speed to the load instead of shifting gears.
Tell us your cargo and route — we recommend the right capacity and compartments.
175 kW Engine for Sustained Dozing The WD10G178E25 engine is rated 175 kW (ISO 14396) at 1,800 r/min, providing the drawbar pull needed for continuous earthmoving. A 26,520 kg operating weight keeps the blade loaded through hard cuts. | Stepless Hydrostatic Drive from 0 to 10 km/h The dual-path, closed-loop electronically controlled hydrostatic transmission gives stepless speed control from 0 to 10 km/h in forward and reverse. Hydrostatic steering and wet multi-disc brakes hold the machine on grades up to 30°. |
Six Configurations to Match the Job Site Choose STD, LGP, CH, DS, WH or FR builds: operating weight ranges from 26,520 kg (STD) to 28,560 kg (WH), and ground pressure from 41.7 kPa (DS) to 76.5 kPa (FR). Each version is factory matched to its blade and undercarriage. | Blades from 5.5 m³ to 12.7 m³ with a 860 mm Ripper Blade capacity (ISO 9246) runs from 5.5 m³ (LGP, DS) to 12.7 m³ (WH), including 6.4 m³/5.8 m³ (STD), 9.2 m³/7.5 m³ (CH) and 8.7 m³ (FR). The parallelogram ripper cuts to 860 mm with adjustable shank positions. |
19 MPa Hydraulics with Pilot Control A closed-center, pilot-controlled hydraulic system runs at 19 MPa with a gear pump, keeping blade lift, tilt and ripper response consistent through the working cycle. | Undercarriage Matched to Ground Conditions Track shoe width runs from 560 mm (STD) to 915 mm (LGP, DS, WH), with 40 or 45 shoes and 7 or 8 track rollers per side plus 2 carrier rollers. Minimum ground clearance is 400 mm. |
Compare features and prices — no obligation.
The SEM 822D bulldozer is shipped in nude packing with anti-corrosion treatment applied to the exposed surfaces, and the blade, ripper and undercarriage components are secured for ocean transport. Depending on the destination and order volume, we arrange shipment by bulk ship, Ro-Ro vessel or flat rack container. Standard production takes 15-20 working days, while custom configurations such as LGP, CH, DS, WH or FR require 25-30 days. We support FOB, CFR, CIF and EXW terms, and our team coordinates the full export documentation and loading process.
Get exact freight cost to your port within 24 hours.
Shandong Chengda is a China-based supplier of construction and earthmoving machinery, offering machines such as the SEM 822D bulldozer to contractors, mining operators, rental fleets and municipal works projects. Beyond complete units, we assist buyers with configuration selection, export packing, shipping documentation and spare parts supply, and we maintain long-term cooperation with major domestic and international OEMs. Our team supports customers from the first enquiry through to after-sales service, so that every machine arrives ready for work on site.
Work directly with the manufacturer — no middlemen.
We regularly welcome international customers from Africa, Southeast Asia, South America and the Middle East to our factory, where they tour the production line and watch the SEM 822D bulldozer go through assembly, hydraulic system testing and field operation checks. Visitors can inspect the 175 kW WD10G178E25 engine, the electronically controlled hydrostatic transmission and the different blade and ripper configurations up close, then discuss the right setup for their earthmoving, mining or road projects. Many of these factory visits end with confirmed orders and repeat business, and several buyers have become long-term partners who keep coming back for spare parts and additional machines.
Join buyers from 80+ countries who have visited our factory and closed deals.
What is the operating weight of the SEM 822D bulldozer?
The operating weight is 26,520 kg with the SU blade and ripper fitted. Different configurations range from 26,520 kg to 28,560 kg depending on blade and undercarriage setup.
What engine powers this construction bulldozer?
It uses the WD10G178E25 engine rated at 175 kW at 1,800 r/min under ISO 14396. This gives enough power for heavy earthmoving, mining and road work.
Which configurations are available for the SEM 822D?
Six versions are offered: STD standard, LGP wetland, CH coal, DS desert, WH sanitation and FR forestry. Each one matches a different job site and blade type.
How much material can the standard blade move?
The standard SU/S blade has a capacity of 6.4m³ or 5.8m³ under ISO 9246. Blade width is 3,660mm or 3,800mm including the cutting edges.
Can this sem bulldozer work on soft or wet ground?
Yes. The LGP wetland version uses 915mm track shoes and lowers ground pressure to 43.0kPa. That keeps the dozer stable on soft soil and wet sites.
How deep can the ripper penetrate?
The parallelogram ripper reaches a maximum digging depth of 860mm, with the shank position adjustable. Maximum lift height ranges from 615mm to 742mm depending on configuration.
Still have questions? Ask us directly.
